JA Comfort SMINowy

Kategoria

Silniki do żaluzji weneckich

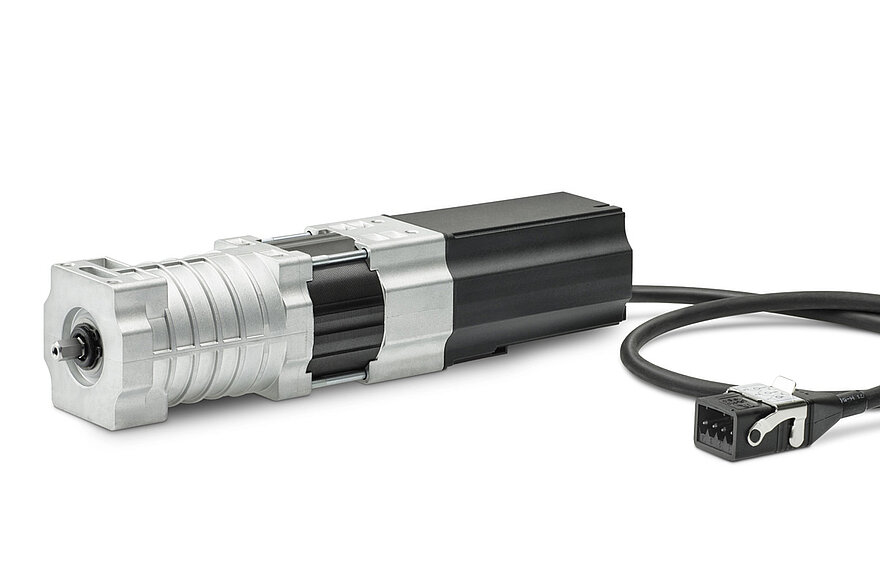

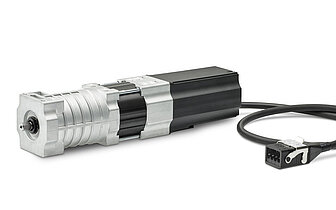

JA Comfort SMI is a venetian blind motor with electronic limit switch and integrated SMI interface. This drive provides feedback information and can communicate with a bus system (e.g. KNX, LON) via a corresponding actuator.

Cechy produktów

Żaluzje
Elektroniczne
Przewodowe

JA Comfort SMI - Venetian blind motor with an integrated SMI interface

Przykłady zastosowania

Opis

Product features

  • Belt length compensation
  • Standstill recognition
  • Slow travel while slats being moved and when approaching end positions
  • Mushroom-shaped safety cut-out
  • Available with 26, 35 and 50 rpm
  • Noiseless soft brake
  • SMI interface integrated
  • Operation, parametrisation, diagnosis and update via SMI interface
  • Stand-by power < 0.3 W
  • Ready for SMI 3.0 standard
Varianty produktu
  • JA 06 Comfort SMI

    6 Nm max. torque, 26 rpm speed, Slow travel mode: 6 rpm

    Numer artykułu: 35 357.0001

  • JA 09 Comfort SMI

    9 Nm max. torque, 26 rpm speed, Slow travel mode: 6 rpm

    Numer artykułu: 35 367.0001

  • JA 04/35 Comfort SMI

    4 Nm max. torque, 35 rpm speed, Slow travel mode: 6 rpm

    Numer artykułu: 35 355.0001

  • JA 06/35 Comfort SMI

    6 Nm max. torque, 35 rpm speed, Slow travel mode: 6 rpm

    Numer artykułu: 35 365.0001

  • JA 04/50 Comfort SMI

    4 Nm max. torque, 50 rpm speed, Slow travel mode: 6 rpm

    Numer artykułu: 35 325.0001
